3304 DI 1N4304 Cylinder Head For 3304 Direction Type

  • 3304 DI 1N4304 Cylinder Head For 3304 Direction Type
  • 3304 DI 1N4304 Cylinder Head For 3304 Direction Type
  • 3304 DI 1N4304 Cylinder Head For 3304 Direction Type
Place of Origin CHINA
Brand Name HKT
Model Number 3304
Minimum Order Quantity 1 SET
Packaging Details wooden box
Delivery Time 1-7 Days for stock items, 10-25 days for production order
Payment Terms T/T , Western Union , RMB
Supply Ability 500 pcs each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 3304 Part No. IN4034
Port Huangpu Size Standard
Appliion Construction Machinery Engine Package Wooden Box
High Light

1N4304 Cylinder Head

,

3304 Cylinder Head
Leave a Message
Product Description

3304 DI 1N4304 Cylinder Head For 3304 Direction type

PRODUCT NOTES

The DS-1N-4304 bare cylinder head can be used in 3304 direct injection engine models typically utilized in the following appliions:

  • 215, 215B, 215C, 215D, 219, 219D, 225, 225B, 225D, 229 and 229D Excavators
  • 112F, 120G and 130G Motor Graders
  • 515, 518, 518C, 525 and 527 Skidders
  • 963 Track Loaders
  • D4D, D4E and D5H Tractors
  • 94, 941B, 951B, 951C, 955K, 955L Traxcavators
  • CB-534, CP-643, CP-653, CS-643 and CS-653 Vibratory Compactors
  • 920, 930, 930R, 930T, 936, 936E, 936F, 950, 950B and 950E Wheel Loaders

Product Details :

Please allow at least one half to one full business day to ship. Ships Motor Freight. Please contact us with any questions or concerns.

Consists of :

Part Number OEM Number Description Qty
360423 1N4304 CYLINDER HEAD 1
391958 1007861 EXHAUST VALVE 4
391948 1007860 INTAKE VALVE 4
392047 7S7144 VALVE SPRING 8
392026 1W5300 ROTOCOIL ASSEMBLY 8
192024 S-2037 RETAINER COLLET 16

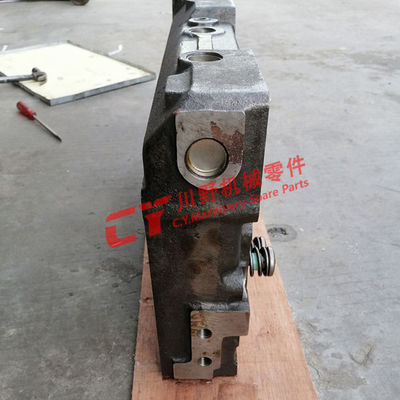

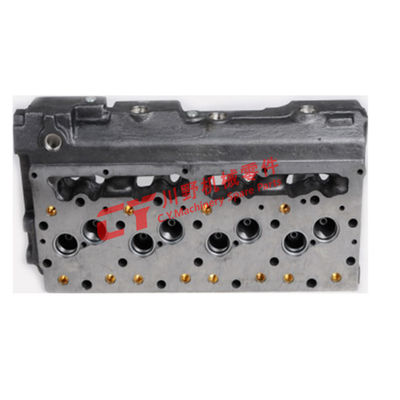

3304 DI 1N4304 Cylinder Head For 3304 Direction Type 03304 DI 1N4304 Cylinder Head For 3304 Direction Type 1

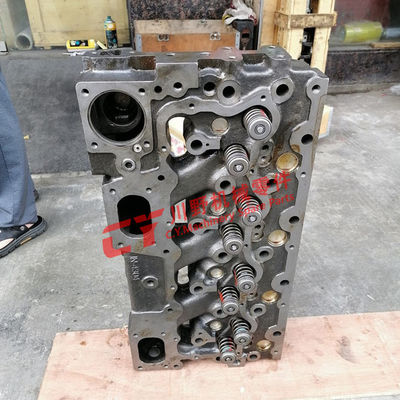

3304 DI 1N4304 Cylinder Head For 3304 Direction Type 2







FAQ



Q: Do you have stock for the goods?
A: We have plenty stock for many items in the warehouse.



Q.What is your business scope

A. Complete Engine

B. Cylinder Head

C. Cylinder Block

D. Crankshaft & Camshaft

E. Liner Kit

F. Connecting Rod & Bearing

G. Water & Oil Pump

H. Turbocharger

I. Hydraulic Pump & Parts

J. Slewing bearing

K. Undercarriage

L. Hydraulic cylinder assy & adjust cylinder assy with spring.

M. Travel & Swing Gear Parts

N. L. Rubber & Other Parts



Q. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria



Q: How can I get a quotation?
A: A complete quotation based on the details as follows in your inquiry:
1. Part No. 2.Engine model 3.Machinery model 4. Description and size

  1. Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.

Q: 4. When can you deliver after sending deposit?
It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.


Q: How do you pack the goods?
We have 20 years experience on export, finished products will be carefully handled by three steps:
1: Wrapped with packing paper or plastic bag;
2: HKT / FUP box or neutral box;
3: Put in an appropriate carton box or wooden boxes and be fixed firmly.



Q: How can I know the status of my order?
We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away



Q: How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly



Q: What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
