4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2

  • 4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2
  • 4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2
  • 4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2
Place of Origin CHINA
Brand Name HKT SENNUO
Model Number C4.4
Minimum Order Quantity 1 PCS
Packaging Details wooden box
Delivery Time 1 - 7 Days for stock items, 10-25 days for production order
Payment Terms T / T , Western Union , RMB
Supply Ability 500 PCS each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machinery E315D2 Model C4.4
Part No 2674A211 Brand HKT
Delivery 3 - 15 Days G.W. 8.5KG
High Light

C4.4 Engine Turbocharger

,

2674A211 Engine Turbocharger

,

E315D2 Engine Turbocharger
Leave a Message
Product Description

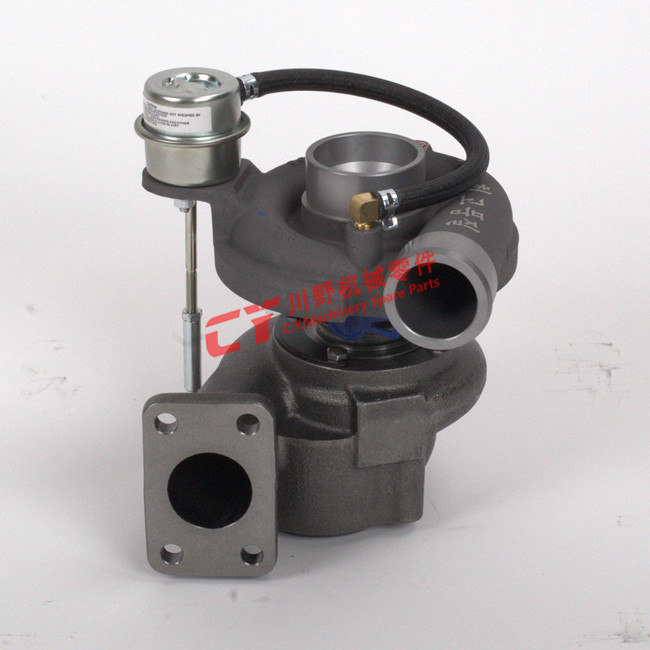

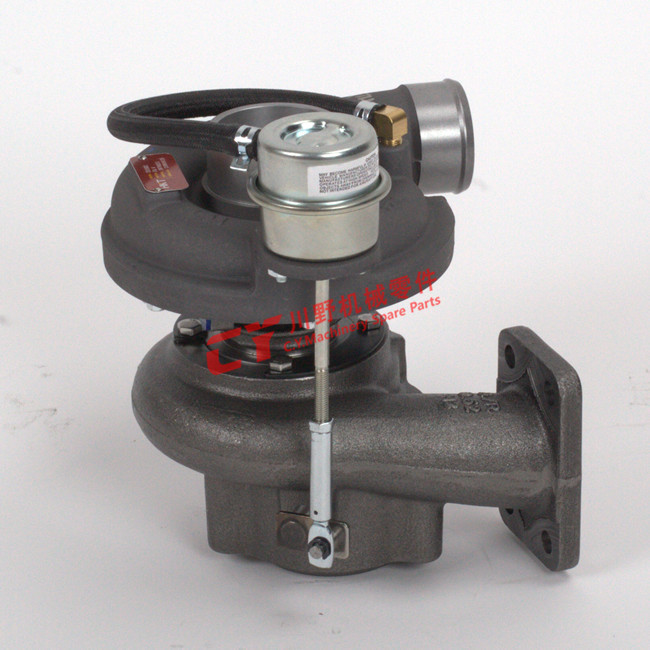

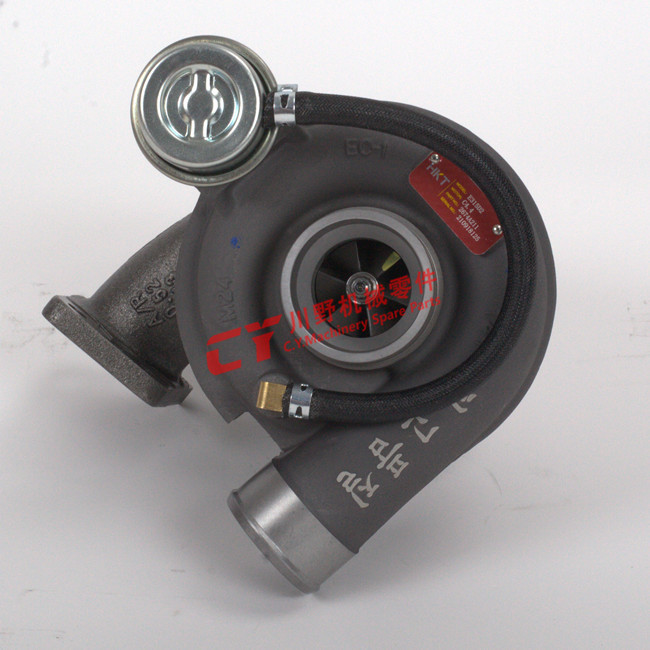

2674A211 C4.4 Engine Turbocharger for Diesel Engine Turbo E315D2



Product Description


OE number 2674A211
Description Various
Engine T4.40
Engine Manufacturer OFF Highway
Displacement 4.4L, 4400 ccm, 4 Cylinders
KW 90
RPM Max 2200
Fuel Diesel
Angle α (compressor housing 260°
Angle β (turbine housing) 197°
Bearing Housing 713782-0010 (433275-0002, 433275-0005, 435793-0002, 713782-0002)(Oil Cooling Type)
Turbine Wheel 436563-0003 (436563-0010)(Ind. 54. mm, Exd. 45.72 mm, 12 Blades)
Comp. Wheel 436336-0019 (436563-0002) (Ind. 39.7 mm, Exd. 56. mm, 6+6 Blades, Superback)(1102022408)
Back plate 721086-0001
Heat shield Number 434686-0001
Repair Kit 732252-0001 (1102015756)
Turbine Housing 711739-0001
Compressor Cover 721261-0010
Turbine Housing AR 0.52
Settings waste gate (pressure) 1.250-1.310 bar
Settings Waste gate (lift shaft) 1.00 mm











4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2 04400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2 1

4400 ccm 2674A211 C4.4 Engine Turbocharger For E315D2 2
