49189 - 00540 Excavator Turbocharger For 4BG1 Engine SY135

Place of Origin China
Brand Name HKT
Model Number 4BG1
Minimum Order Quantity 1 pc
Packaging Details Wooden case
Payment Terms T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Excavator Turbocharger Packing Wooden Case
Engine Model 4BG1 MOQ 1 PC
Part Number 49189 - 00540 Material K18 Shaft, METAL
High Light

49189 - 00540 Excavator Turbocharger

,

4BG1 Excavator Turbocharger

,

SY135 Excavator Turbocharger

Leave a Message
Product Description

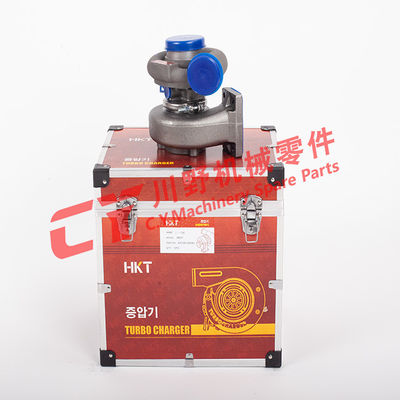

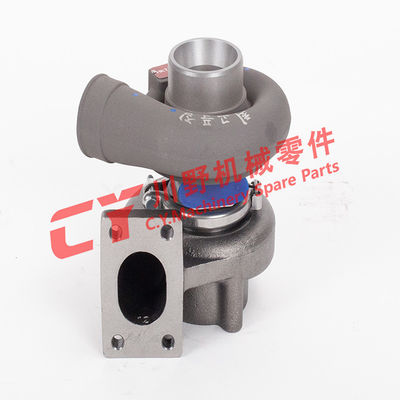

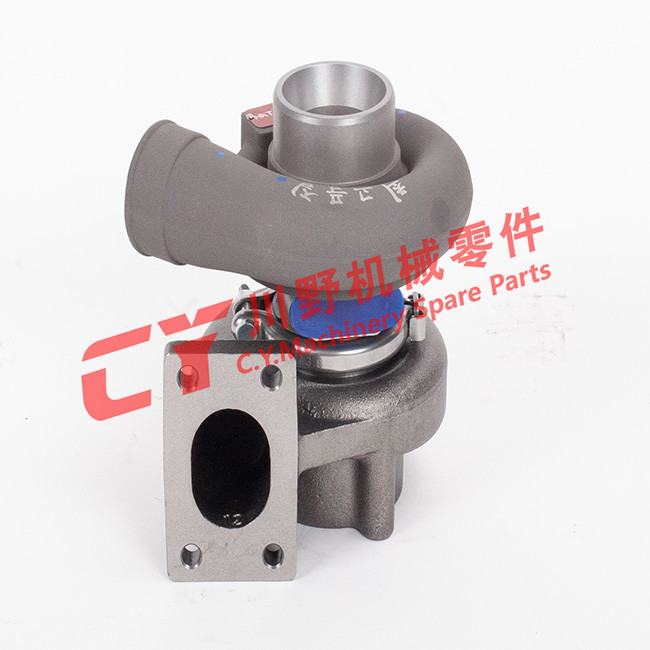

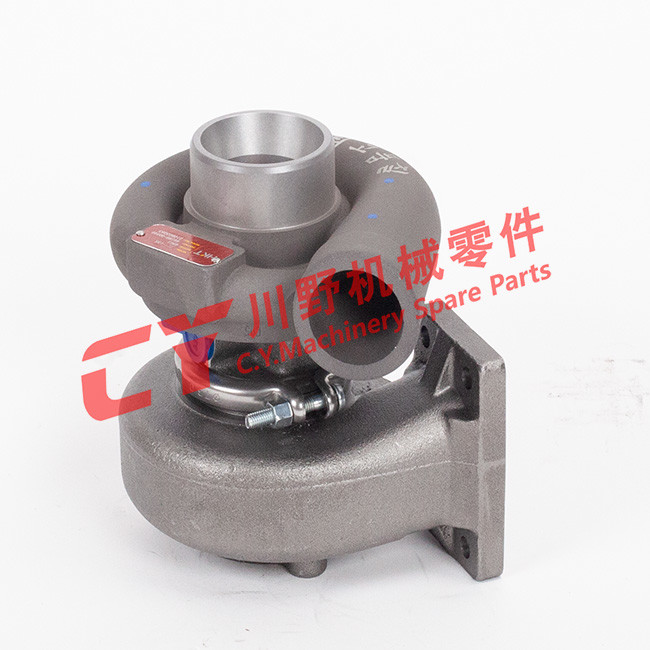

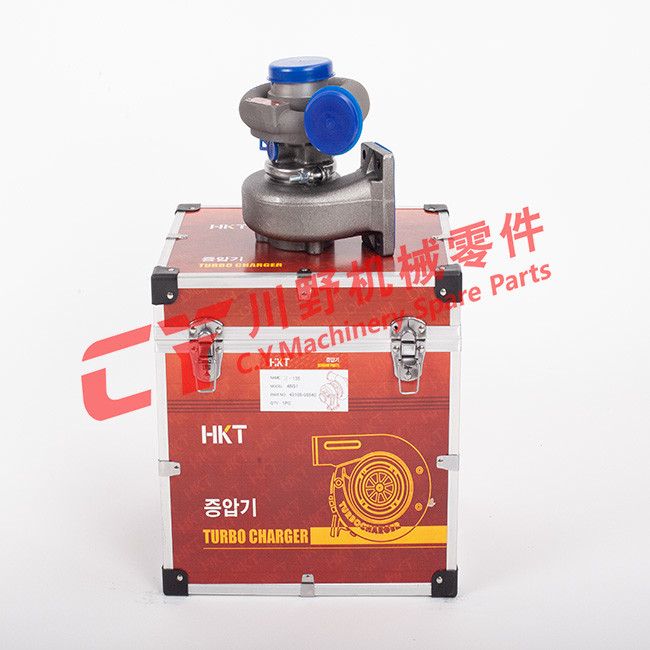

49189 - 00540 Excavator Turbocharger For 4BG1 Engine For SY135



Product name: Excavator Turbocharger
Shaft: K18
Condition: HKT Brandnew
MOQ: 1 pc
H.S. Code: 8414803090
Gross Weight: 4.7 kgs
Packing sizes: 31*26*31
Shipping: By sea,by exprss



Part Number 49189-00540
Previous Version 4918900540, 49189-00550, 49189-00511
OE number 8971159720, 8971159721, VI8971159720, 8-97115-972-0, 8970114741, 960817125, 8971159720, 5I7585, 5I7952, 02-800380, 02/800380, 02800380, 2-800380, 2/800380, 2800380, 289731A1
Description Various Construction, Industrial
CHRA 49189-08100 (4918908100)(1000050013)
Turbo Model TDO4HL-15G/12
Engine 4BG1T
Appliion SK120, SK120-1
Engine Manufacturer ISUZU, JCB
Displacement 4.3L, 4300 ccm
Fuel Diesel
Bearing Housing 49189-26400 (49189-20110)(Oil Cooled)(1900011184, 503050001)
Turbine Wheel 49189-30100 (Ind. 52. mm, Exd. 45.6 mm, 12 Blades)(1401404438, 1100030028, 501050002)
Compressor Wheel 49177-43400 (49189-40200)(Ind. 41.29 mm, Exd. 55.69 mm, 6+6 Blades, Superback)(1401404415, 1200030030)
Back plate 49135-00044 (49135-15405, 49173-22500)(F/Back)(1401404300, 1800016030)
Heat Shield 49183-19300 (1401404340, 2030-016-085, 506040003)
Repair Kit 49189-84000 (49177-80400)(1401404753, 5000050004, 509040002)
Turbine Housing 49189-15800
Turbine Housing AR 12.0
Gasket (oil outlet) 210317 (5I7689)(Paper)(1900000042)
Gasket (turbine inlet) 5I7933
Gasket (Comp. Outlet) 2344818



49189 - 00540 Excavator Turbocharger For 4BG1 Engine SY135 049189 - 00540 Excavator Turbocharger For 4BG1 Engine SY135 1



FAQ



Q: Do you have stock for the goods?
A: We have plenty stock for many items in the warehouse.



Q.What is your business scope

A. Complete Engine

B. Cylinder Head

C. Cylinder Block

D. Crankshaft & Camshaft

E. Liner Kit

F. Connecting Rod & Bearing

G. Water & Oil Pump

H. Turbocharger

I. Hydraulic Pump & Parts

J. Slewing bearing

K. Undercarriage

L. Hydraulic cylinder assy & adjust cylinder assy with spring.

M. Travel & Swing Gear Parts

N. L. Rubber & Other Parts



Q. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria



Q: How can I get a quotation?
A: A complete quotation based on the details as follows in your inquiry:
1. Part No. 2.Engine model 3.Machinery model 4. Description and size

Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.



Q: 4. When can you deliver after sending deposit?
It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.


Q: How do you pack the goods?
We have 20 years experience on export, finished products will be carefully handled by three steps:
1: Wrapped with packing paper or plastic bag;
2: HKT / FUP box or neutral box;
3: Put in an appropriate carton box or wooden boxes and be fixed firmly.



Q: How can I know the status of my order?
We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away



Q: How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly



Q: What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
