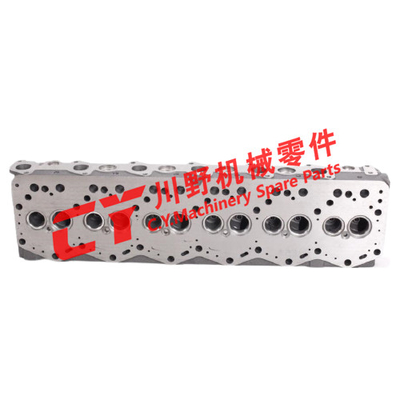

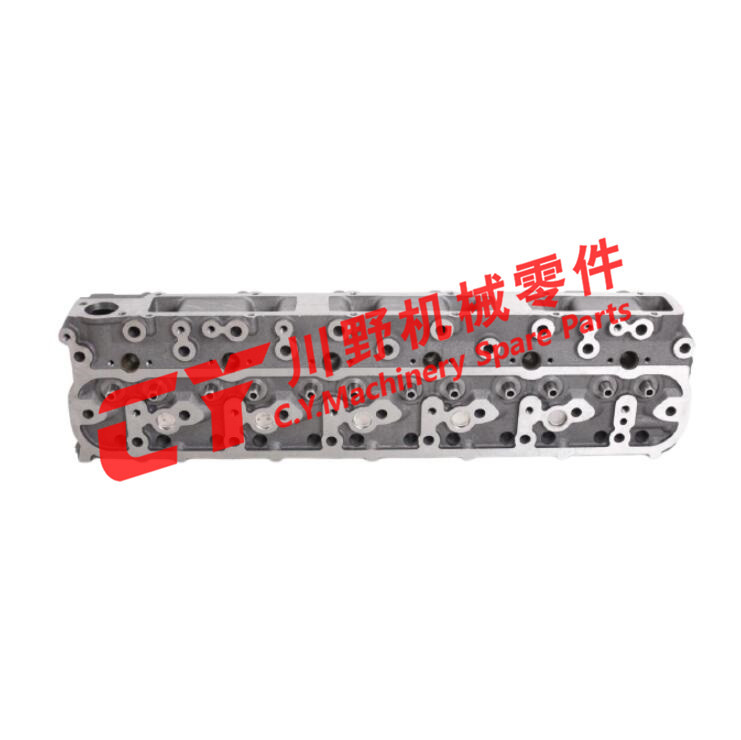

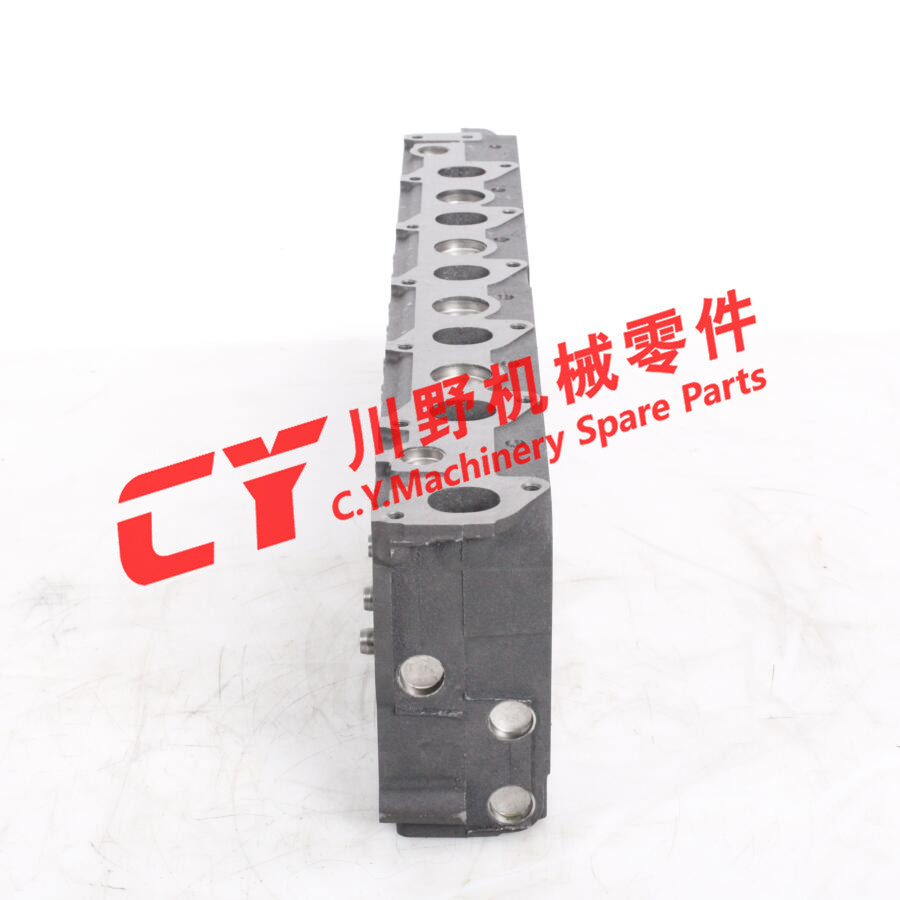

6138-12-1100 6138121100 Engine Cylinder Head SA6D110 6D110

6138-12-1100 6138121100 Engine Cylinder Head SA6D110 6D110

	6138-12-1100	CYLINDER HEAD ASS'Y,VALVE LESS	1
1		• HEAD,CYLINDER	1
2	6136-11-1130	• SLEEVE,HOLDER	6
3	6138-12-1310	• SEAT,INTAKE VALVE	6
	6138-19-1310	• SEAT¤ 0.25MM,INTAKE VALVE (STD)	6
	6138-18-1310	• SEAT¤ 0.50MM,INTAKE VALVE (OS)	6
	6138-17-1310	• SEAT¤ 0.75MM,INTAKE VALVE (OS)	6
	6138-16-1310	• SEAT¤ 1.00MM,INTAKE VALVE (OS)	6
4	6136-12-1320	• SEAT,EXHAUST VALVE (STD)	6
	6136-19-1420	• SEAT¤ 0.25MM,EXHAUST VALVE (OS)	6
	6136-18-1420	• SEAT¤ 0.50MM,EXHAUST VALVE (OS)	6
	6136-17-1420	• SEAT¤ 0.75MM,EXHAUST VALVE (OS)	6
	6136-16-1420	• SEAT¤ 1.00MM,EXHAUST VALVE (OS)	6
5	6136-19-1430	• GUIDE,VALVE	12
6	07046-42816	• PLUG	13
7	07046-44016	• PLUG	9
8	07043-50108	• PLUG	7
9	6138-42-4110	VALVE,INTAKE	6
10	6136-42-4210	VALVE,EXHAUST	6
11	6136-42-4410	SPRING,VALVE	12
12	6136-42-4510	GUIDE,SPRING	12
13	6136-42-4520	COTTER,VALVE	24
14	6136-41-4530	SEAT,SPRING	12
15	6138-19-1810	GASKET,HEAD (K1)	1
16	6136-12-1610	BOLT,HEAD	26
17	6136-11-1910	HANGER,FRONT	1
18	6136-11-1821	GASKET (K1)	1
19	6136-11-1920	HANGER,REAR	1
20	01435-01012	BOLT	2
	01010-31020	BOLT	2
21	01602-01030	WASHER,SPRING	2

have difference with 6D105
