4987914 Engine Cylinder Liner Kit 6L Piston Pin Clip Ring 6BT 6CT

Place of Origin CHINA
Brand Name HKT FUP
Model Number 6L
Minimum Order Quantity 6PC
Packaging Details Carton box
Delivery Time 1-7 Days for stock items, 10-25 days for production order
Payment Terms T/T, Western Union
Supply Ability 1000 pcs each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MACHINERY CUMMINS ENGINE 6L
PART NO 4987914 NAME PISTON
SIZE INTERNATIONAL STANDARD MATERIAL IRON
High Light

4987914 Engine Cylinder Liner Kit

,

6CT Engine Cylinder Liner Kit

Leave a Message
Product Description

4987914 Engine Cylinder Liner Kit 6L Piston



Quick Details
Condition:
New
Warranty:
6 Months
Applicable Industries:
Machinery Repair Shops, Other
Weight (KG):
4
Showroom Loion:
None
Video outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
Ordinary Product
Place of Origin:
Guangdong, China
Brand Name:
OEM
Engine Type:
Diesel
Type:
PISTON
Engine Model:
6L
Item name:
Cummins Diesel Engine 6L Piston
Part Number:
Cummins 4987914 5302254 4936496
Sample:
Available
Stock:
Large





Packaging & Delivery

Selling Units:
Single item
Single package size:
30X20X20 cm
Single gross weight:
4.000 kg
Package Type:
HKT FUP packing or factory packing




6





Product Attribute:

Surface Treatment:Tinned Graphite

Material:Aluminium

Diameter:114mm

No. of Cylinders:6

Size:114mm

Certifiion:ISO9001

G.W:3.4kg



Production Description:

Cummins ISL / QSL 6DieselCylinder543 CID; 24 valve head StrokeBore 114mm144.5mENGINE KITSIF3800910 Inframe kit 1 CAPS fuel system, CM554; Piston kit 3800910, Piston top 3967507OH3800910 Overhaul kit 1 CAPS fuel system, CM554; Piston kit 3800910, Piston top 3967507IF4089944 Inframe kit 1 CAPS fuel system, CM554; Piston kit 4089944, Piston top 4941395OH4089944 Overhaul kit 1 CAPS fuel system, CM554; Piston kit 4089944, Piston top 4941395IF4089646 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4089646, Piston top 4941392OH4089646 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4089646, Piston top 4941392IF4089963 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4089963, Piston top 4941393OH4089963 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4089963, Piston top 4941393IF4955237 Inframe kit 1 HPCR fuel system, CM850; Piston kit 4955236, Piston top 4941396OH4955237 Overhaul kit 1 HPCR fuel system, CM850; Piston kit 4955236, Piston top 4941396IF4955530 Inframe kit 1 HPCR fuel system, CM2150; Piston kit 4955530, Piston top 4932721OH4955530 Overhaul kit 1 HPCR fuel system, CM2150; Piston kit 4955530, Piston top 4932721CYLINDER KIT3800913 Cylinder kit 6 Contains 3800910 piston kit, 3800912 ring set, 3934046 pin, 3800328 liner kit [3800913]3800910 Piston kit 6 Contains 3945458 top, 3800912 ring set, 3800914 skirt kit [3800910; replaces 3967507]4089613 Piston kit 6 Contains 3950395 top, 3800912 ring set, 3920692 retainers, 3934046 pin, 39667skirt [4089613; replaces 4025183]4089944 Piston kit 6 Contains 4941395 top, 4089644 ring set, 3920692 retainers, 3950549 pin, 39667skirt [4089944; replaces 4955299]4089646 Piston kit 6 Contains 4941392 top, 4089644 ring set, 3920692 retainers, 3966721 skirt [4089646; replaces 4955296]4089963-B Piston kit 6 Contains 4941393 top, 4089644 ring set, 3920692 retainers, 3966721 skirt [4089963; replaces 4955297]4955237-B Piston kit 6 Contains 4941396 top, 4089644 ring set, 3920692 retainers, 3966721 skirt [49554955530 Piston kit 6 Contains 4932721 top, 4955651 ring set, 3920692 retainers, 4936397 skirt [4955530; replaces 4309526]3934046-F Piston pin 6 [replaces 3941052, 3901597]3950549-F Piston pin 63920692-F Retainer piston pin 12 [replaces 3901996, 3901922]3800912-F Ring set 6Use with piston 4930435, 3966722, 3950395, 3948612, 39454584089644-F Ring set 6 [replaces 4089643]Use with piston 4941396, 4941395, 4941393, 4941392, 4934266, 4928927, 39744044955651-F Ring set 6 [4955651]3800328-F Cylinder liner kit 6 1/05/98 to Present (Thick-Walled Block)(Previously 3800903) [3948095 liner, 3907177 oring]
3948095-F Cylinder liner 6 1/05/98 to Present (Previously 3944344) (.24" between bores, 5.15 flange OD, 3mm shorter)3907177-F Cylinder liner oring 63924445-F Shim cylinder liner 0.25mm Oversize (0.010 in.)3924446-F Shim cylinder liner 0.38mm Oversize (0.015 in.)3924447-F Shim cylinder liner 0.50mm Oversize (0.020 in.)3924448 Shim cylinder liner 0.75mm Oversize (0.030 in.) [OEM]3924449 Shim cylinder liner 1.00mm Oversize (0.040 in.) [OEM]BEARINGS3802210-F Bearing main set 1 std [when out use: 3945917]3802211-F Bearing main set 1 0.25mm u/s [when out use 3945918]3802212-F Bearing main set 1 0.50mm u/s [when out use 3945919]3945917-F Bearing main set 1 std (narrow); (6) 3944158, (7) 3944153, (1) 39441583945918-F Bearing main set 1 0.25mm u/s (narrow); (6) 3944159, (7) 3944154, (1) 39441643945919-F Bearing main set 1 0.50mm u/s (narrow); (6) 3944160, (7) 3944155, (1) 39441653945920-B Bearing main set 1 0.75mm u/s (narrow); (6) 3944161, (7) 3944156, (1) 39441663901430-F Bearing rod half stdUpper and Lower early engines; Lower only late engines3901431-F Bearing rod half 0.25mm u/s3901432-F Bearing rod half 0.50mm u/s3901433-F Bearing rod half 0.75mm u/s3901434-F Bearing rod half 1.00mm u/s3950661-F Bearing rod half Std [3950661; replaces 3901430, 3901460]Upper and Lower early engines; Lower only late engines3950662-F Bearing rod half 0.25mm u/s [3950662]3950663-F Bearing rod half 0.50mm u/s [3950663]3950664-F Bearing rod half 0.75mm u/s [3950664]3950665-F Bearing rod half 1.00mm u/s [3950665]3966244-F Bearing rod half 6 Std [3966244]Upper only late enginess3966245-CMO Bearing rod half 0.25mm3966246-CMO Bearing rod half 0.50mm3966247-CMO Bearing rod half 0.75mm3966248-CMO Bearing rod half 1.00mm3945329-F Bearing cam 7 [repl 3901685, 3943199]3945703-CMO Bushing con rod 64944137-B Bushing con rod 6 Used with 4947898 and 5266243 rodsGASKET & SEALS4089958-F Set cylinder head 1 [replaces 4025238, 3800342]
CAMSHAFT3942565-F Lifter 12 MechanicalCAPS CM5543945866-F Lifter 12 Mechanical; 1.50" dia (38mm)CAPS CM554: Must be used with chilled ductile camshaft (uses woodruff key for cam gear)3968344 Lifter 12 Roller type, 27.96mm diameter [3968344; replaces 3965370, 3958717, 3945858]3965966-F Lifter 12 Roller type, 31.25mm diameter [3965966]VALVE TRAIN3948583RX Cylinder head 1 Remanufactured, complete [Cast 3943566]CM5543969734RX Cyliner head 1 Remanufactured; Complete with valves [3969734 assembly; 3969722 casting]CM8503800340-F Valve intake 12 Kit with locks: 3942588 valve, 3900250 locksCM55402188 Valve intake 12 1.496 head, 5.423 OAL, 0.3135 stem, 30 deg, 1G [3942588]CM5544089761-F Valve intake 12 Kit with locks: 3970727 valve, 3900250 locksCM850, CM215013162 Valve intake 12 1.496 head, 5.423 OAL, 0.3135 stem, 30 deg, 1G, Inconel [3970727]CM850, CM21503800341-F Valve exhaust 12 Kit with locks: 3942589 valve, 3900250 locksCM55402187 Valve exhaust 12 1.496 head, 5.424 OAL, 0.3135 stem, 45 deg, 1G [3942589]CM5544089762-F Valve exhaust 12 Kit with locks: 3969637 valve, 3900250 locksCM850, CM215013163 Valve exhaust 12 1.496 head, 5.424 OAL, 0.3138 stem, 45 deg, 1G; Inconel, Letter "0" in head [3969637]CM850, CM2150140-8715 Valve guide 24 0.3163 ID, 0.5512 OD, 1.949 OAL [3942645, 3945249, 3948102]4936076-F Valve spring 24 Used with retainer [4936076 2 green stripes, 3944711 purple stripes]4936079-F Valve spring 12 Used with rotators [4936079 light blue; repl 4931931 white, 3999907 two vertical yellow stripes]QSL engines with exhaust valve rotators3944452-B Valve spring retainer 24

3979599 Rotator 12QSL engines with exhaust valve rotators3900250-F Valve lock 48122-1439 Valve stem seal 24 Top hat style, black color; 0.2920 top stemID, 0.7440 OAL, 0.550-0.560 nominal guideOD, blue [3948578, 3943888, 3991267]3943888 was originally for int and exh, then just intake, then superceded to 3948578 (originally just exhaust, now intake and exhaust)SB1554E-1 Valve insert 12 Intake; 1.280T ID, 1.324 ID taper top, 1.554 OD, 0.2360 depth, 30-deg [3969704, 3940152]SB1554E-2 Valve insert 12 Exhaust; 1.301T ID, 1.348 ID taper top,1.554 OD, 0.1900 depth, 45-deg [3968074, 3940153]3917728-F Bolt cylinder head 26 M14 x 2.00 x 160 [replaced by 3960043]

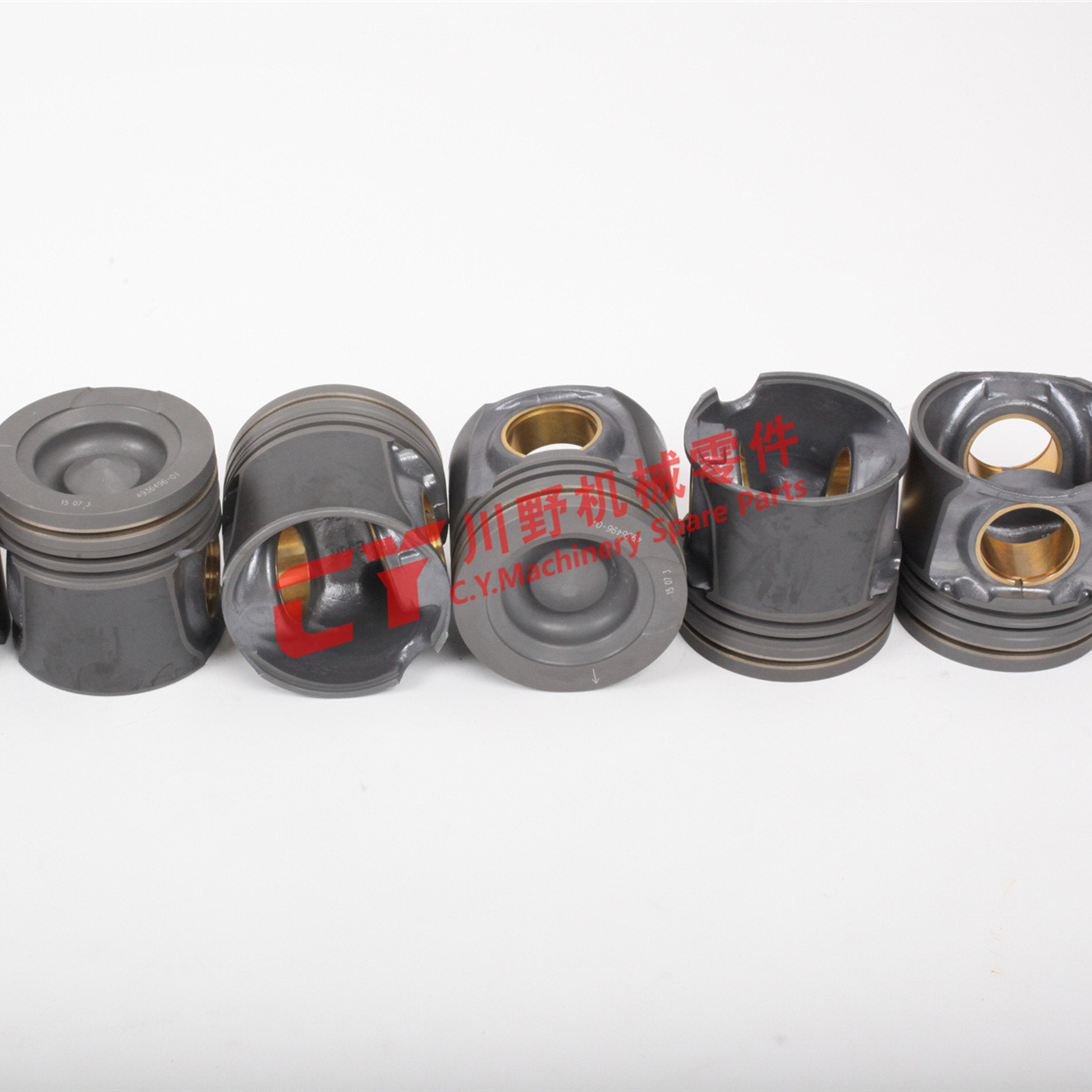

4987914  Engine Cylinder Liner Kit 6L Piston Pin Clip Ring 6BT 6CT 0

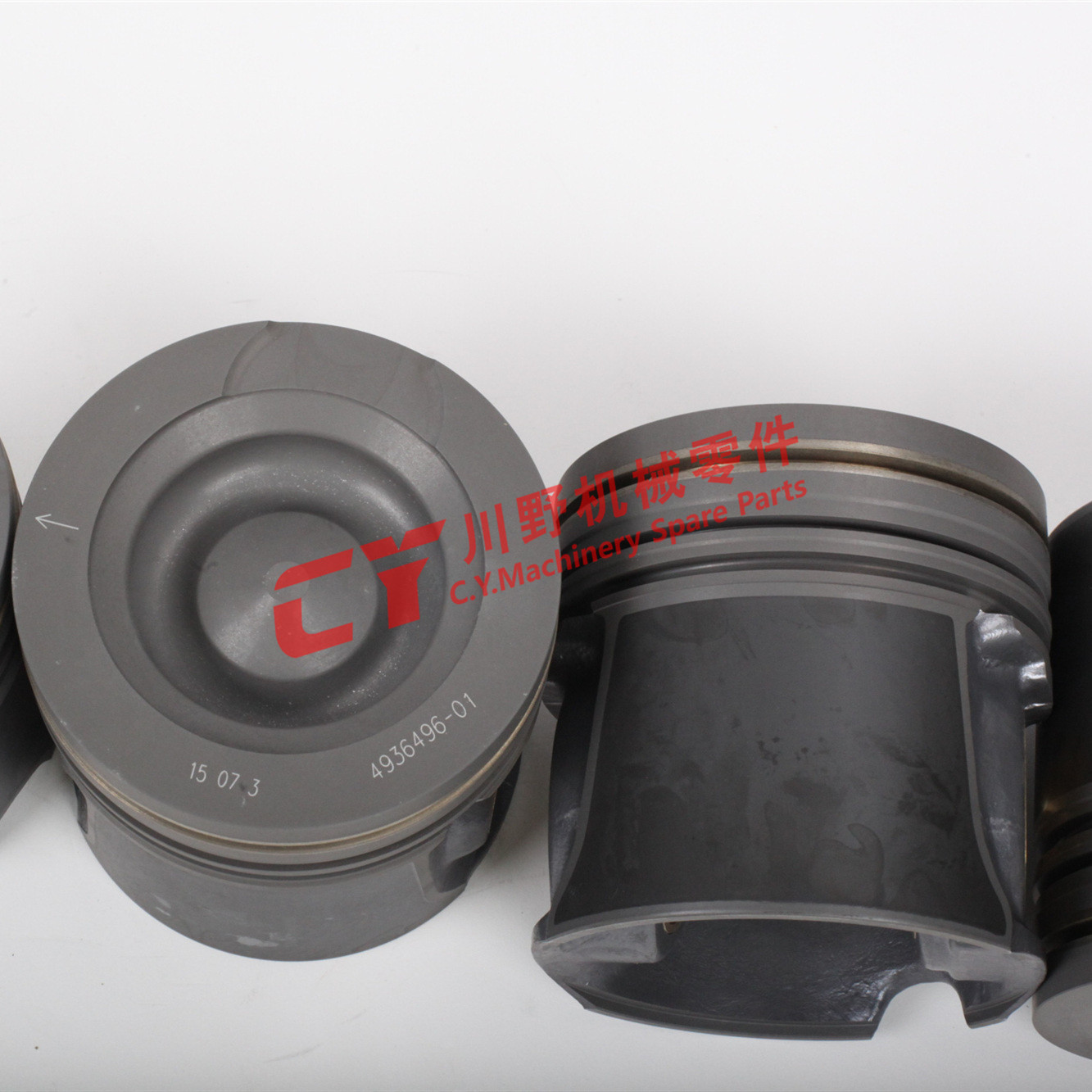

4987914  Engine Cylinder Liner Kit 6L Piston Pin Clip Ring 6BT 6CT 1

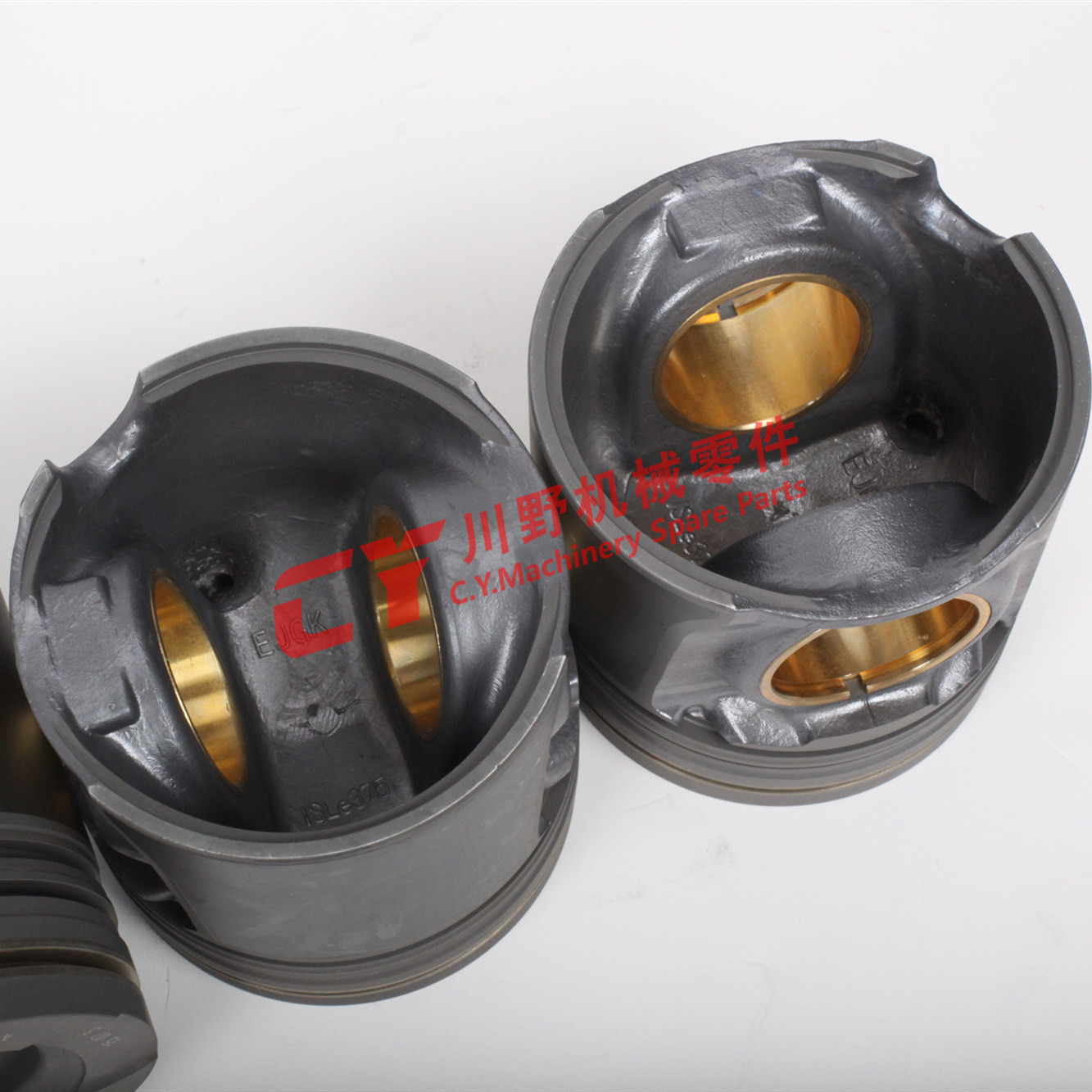

4987914  Engine Cylinder Liner Kit 6L Piston Pin Clip Ring 6BT 6CT 2



FAQ

1. Brand Positioning

Be the first choice of engine spare parts & hydraulic parts of construction machinery international buyers.

2. Brand Advantages

A: Reasonable Price

B: Good Quality

C: On Time Delivery

3. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria

4. When can you deliver after sending deposit?

within one week for stock items, 10 to 35 days for order items.

5. Product egories

A. Complete Engine

B. Cylinder Head

C. Cylinder Block

D. Crankshaft & Camshaft

E. Liner Kit

F. Connecting Rod & Bearing

G. Water & Oil Pump

H. Undercarriage

I. Travel & Swing Gear Parts

J. Hydraulic Pump & Parts

K. Rubber & Other Parts

6. How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly

7. What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
