SA8230 - 33470 VOE14573820 Final Drive Gear Box Final Drive Assembly EC140

Place of Origin CHINA
Brand Name Own brand
Model Number EC140
Minimum Order Quantity 1 SETS
Packaging Details wooden box
Delivery Time 1-7 Days for stock items, 10-25 days for production order
Payment Terms T/T , Western Union , RMB
Supply Ability 500 pcs each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Stock Plenty Model EC140
Appliion For MOQ 1 PC
Quotation Upon Quality Package FUP Or HKT Package
High Light

VOE14573820 Final Drive

,

SA8230 - 33470 Final Drive

,

EC140 Final Drive Assembly

Leave a Message
Product Description

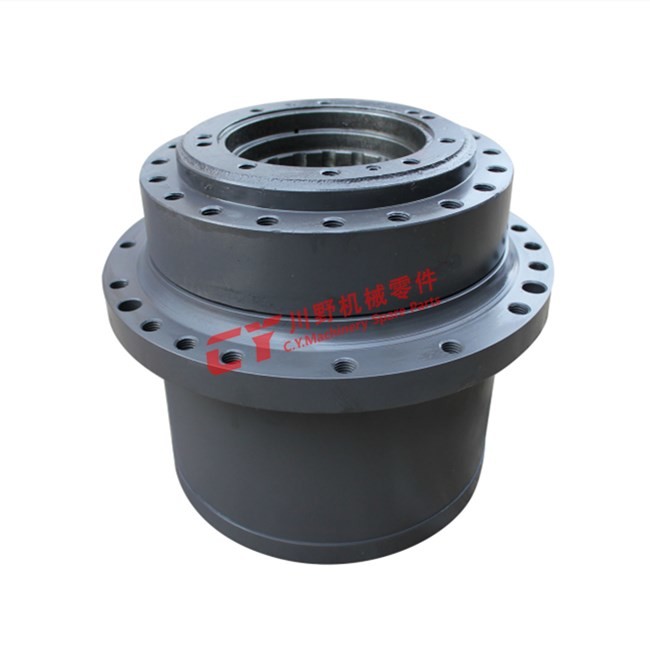

SA8230 - 33470 VOE14573820 Final Drive gearbox Final Drive Assembly EC140


Product Description

Appliion Excavator
Part name Travel reduction gear box
Part number SA8230-33470 VOE14573820
Model EC140 EC135 EC140B
MOQ 1PC
Warranty6 months
Payment term T/T, Western union, PayPal
Delivery 1 days after the payment received
Shipment by sea, by air, by express or as required





Part number system

# Part No Part Name Qty.
DF16F001
  SA 8230-33470 Travel Gearbox 1
1 SA 8230-32570 Cover 1
2 SA 8230-33210 Bolt 12
3 SA 8230-32590 Plug 3
4 SA 9511-12024 O-ring more 3
5 SA 8230-32510 Seal more 2
6 SA 8230-32450 Bearing 2
7 SA 8230-32580 Nut 1
8 SA 8230-32610 Plug 4
9 SA 8230-32540 Housing 1
10 SA 8230-32470 Planetary Gear 4
11 SA 8230-32430 Needle Bearing 4
12 SA 8230-32550 Race 4
13 SA 8230-32480 Washer more 4
14 SA 8230-32500 Pressure Plate 4
15 SA 8230-32530 Screw 4
16 SA 8230-33270 Spring Pin 4
17 SA 8230-32460 Gear 1
18 SA 8230-32520 Ring 1
19 SA 8230-33480 Holder 1
20 SA 8230-33500 Planetary Gear 3
21 SA 8230-32440 Needle Bearing 3
22 SA 8230-32560 Race 3
23 SA 8230-32490 Washer 3
24 SA 8230-33490 Gear 1
25 SA 8230-33540 Plate 1
  SA 8230-33510 Pressure Plate 1
  SA 8230-33520 Pressure Plate 1
  SA 8230-33530 Pressure Plate 1
100 SA 8230-32620 Sealing Kit 1



SA8230 - 33470 VOE14573820 Final Drive Gear Box Final Drive Assembly EC140 0





FAQ





Q. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria



Q: How can I get a quotation?
A: A complete quotation based on the details as follows in your inquiry:
1. Part No. 2.Engine model 3.Machinery model 4. Description and size

Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.



Q: 4. When can you deliver after sending deposit?
It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.


Q: How do you pack the goods?
We have 20 years experience on export, finished products will be carefully handled by three steps:
1: Wrapped with packing paper or plastic bag;
2: HKT / FUP box or neutral box;
3: Put in an appropriate carton box or wooden boxes and be fixed firmly.



Q: How can I know the status of my order?
We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away



Q: How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly



Q: What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
