08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type

  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
  • 08251 SBS140 Excavator Hydraulic Pumps For E325C D E329C D Piston Pump Direct Type
Place of Origin KOREA
Brand Name HANDOK
Model Number SBS140C/D
Minimum Order Quantity 1PC
Packaging Details Wooden box
Delivery Time 1-7 Days for stock items, 10-25 days for production order
Payment Terms T/T, Western Union
Supply Ability 100 pcs each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
MACHINERY E325C/D E329C/D PART NO 08251
NAME HYDRAULIC PUMP SIZE INTERNATIONAL STANDARD
MATERIAL IRON PACKING WOODEN BOX
High Light

SBS140 Excavator Hydraulic Pumps

,

E325C D Excavator Hydraulic Pumps
Leave a Message
Product Description

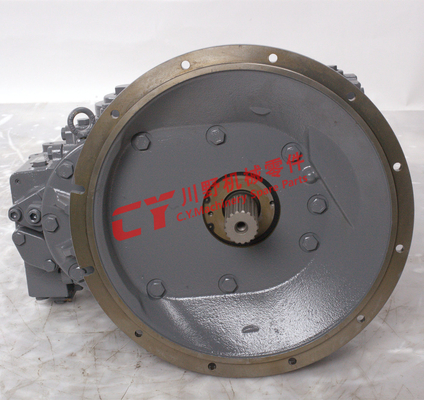

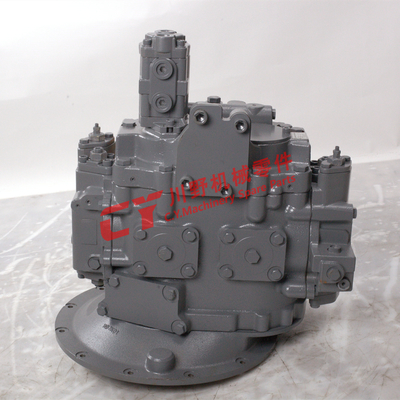

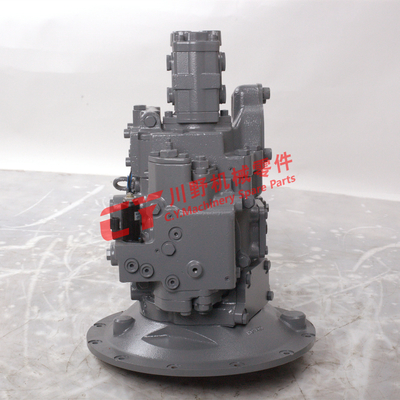

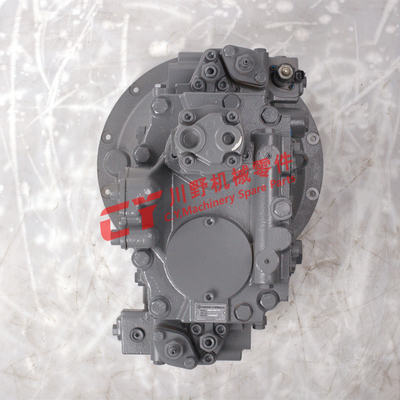

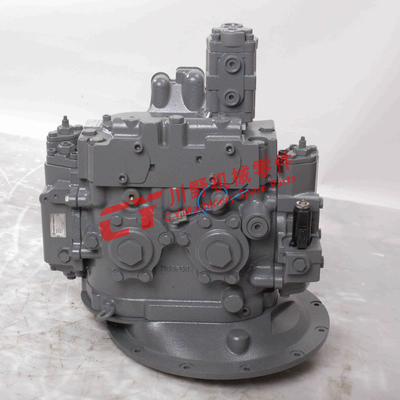

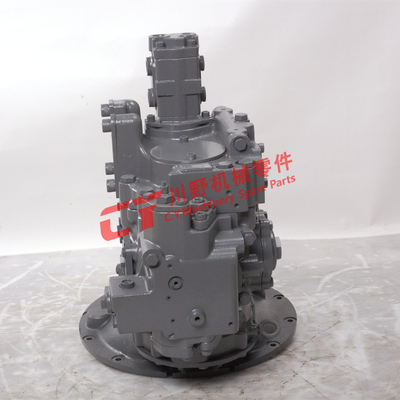

08251 SBS140 Excavator Hydraulic Pumps for E325C D E329C D Piston pump Direct type



Product Name:
Main Pump E325C/D E329C/D MAIN PUMP SBS-140
Machine Model:
SBS140
Brand:
HANDOK
Condition
OEM& Oringal
Warranty:
12 Months
Production Capacity:
10000 Pcs/Month
Payment Term:
T/T, Western Union
Packing Size:
60*70*69 Wooden case
Means of Transport:
By sea,Air,Or DHL/FEDEX/TNT/EMS
MOQ:
1 PCS
Delivery Time:
2 Day after payment
Total Weight:
238kg
Condition:
New Genuine
Material
Forged Steel
Advantage
In stock





OHTER AVAILABLE PARTS:

1 4I-1022 [2] ORIFICE
2 7Y-4215 [2] SPACER
3 096-3983 [1] RING-RETAINING
4 096-4389 [18] SPRING
5 126-2016 J [1] PUMP GP-GEAR (PILOT)
5A. 9T-0835 [1] RING-RETAINING
6 225-4611 [1] CASE
7 234-4494 [1] GASKET
8 234-4493 [1] GASKET
9 194-8325 [2] SET-BEARING
10 129-7863 [1] COVER
11 129-7921 [2] RING-RETAINING
12 234-4498 [1] SEAL-LIP TYPE
13 129-7927 [2] BEARING
14 129-7979 [4] DOWEL
15 150-5782 [2] COVER
16 225-4541 [1] SHAFT-DRIVE
17 173-3427 [2] GUIDE-BALL
18 129-7853 [2] PLATE
19 256-0081 [1] BARREL AS-DRIVE
20 256-0083 [1] BARREL AS-PUMP
21 177-2470 [1] COVER
22 177-2471 [1] COVER
23 177-8740 [1] SEAL-O-RING
24 179-9763 [1] FLANGE
25 188-4210 [2] PISTON AS
26 192-0573 [4] PIN-DOWEL
27 200-3333 [1] HEAD-PUMP
28 200-3334 [1] COVER
29 225-4542 [1] SHAFT-DRIVEN
30 256-0074 Y [1] ACTUATOR GP-PUMP (DRIVE)
31 256-0077 Y [1] ACTUATOR GP-PUMP (DRIVEN)
32 242-6801 [2] SWASHPLATE AS
      (EACH INCLUDES)
32A. 094-1875 [1] DOWEL
32B. 173-3428 [1] BUSHING
32C. 242-6803 [2] PIN-DOWEL
33 242-6804 [4] BEARING
34 9S-4185 [2] PLUG (3/4-16-THD)
35 247-8782 [1] BODY
36 247-8920 [2] ORIFICE
37 094-1875 [6] DOWEL
38 094-1882 [16] PLUG
39 095-0946 [2] RING-RETAINING
40 8T-4196 M [2] BOLT (M10X1.5X35-MM)
41 096-3944 [1] SEAL-O-RING
42 189-9763 [8] SEAL-O-RING
43 190-4896 [2] PLUG
44 193-1736 [4] SEAL-O-RING
45 3K-0360 [2] SEAL-O-RING
46 7M-8485 [2] SEAL-O-RING
47 7X-2557 M [1] BOLT (M16X2X140-MM)
48 8J-4645 [2] PLUG (STRAIGHT THREAD O-RING)
49 8T-3338 [2] SEAL-O-RING
50 8T-4136 M [18] BOLT (M10X1.5X25-MM)
51 8T-4137 M [2] BOLT (M10X1.5X20-MM)
52 8T-4139 M [10] BOLT (M12X1.75X30-MM)
53 8T-4140 M [4] BOLT (M16X2X60-MM)
54 8T-4175 M [2] BOLT (M16X2X90-MM)
55 8T-4176 M [2] BOLT (M12X1.75X90-MM)
56 8T-4192 M [10] BOLT (M12X1.75X25-MM)
  250-2503 J [1] KIT-SEAL (PILOT GEAR PUMP)
