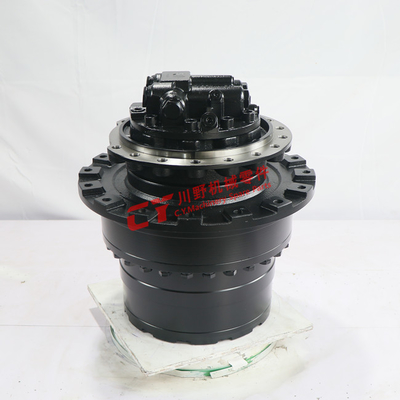

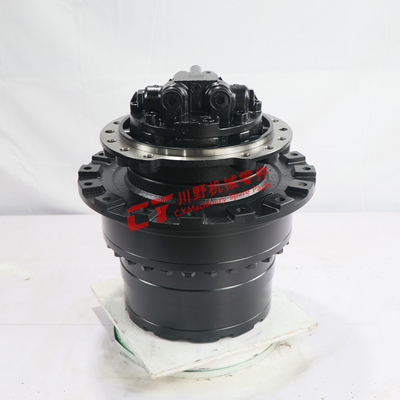

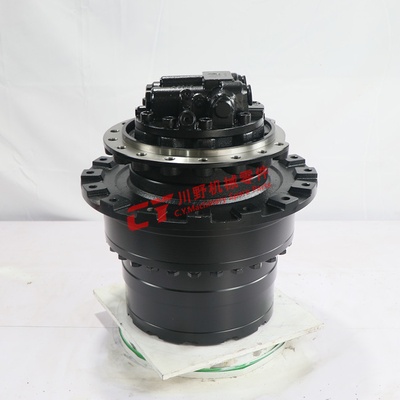

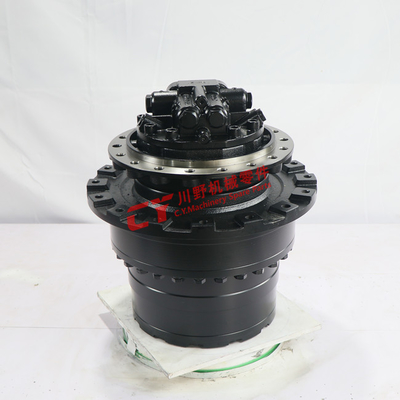

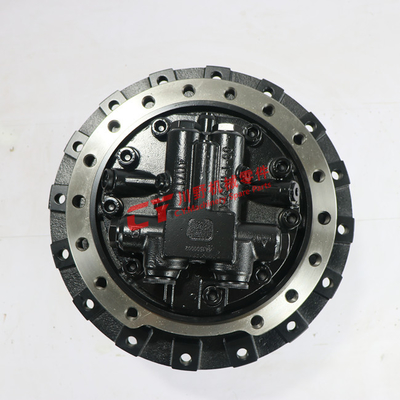

ZAX230 ZX230 Travel Motor Gearbox Assy Final Drive Assy Excavator Travel Gear
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStock | Plenty | Model | ZX230 ZAX230 |
---|---|---|---|
Machine | Excavator | Port | Guangzhou |
Quotation | Upon Quality | Package | Carton Or Wooden Box |
High Light | ZX230 Travel Motor Gearbox,ZAX230 Travel Motor Gearbox,Excavator Travel Gear |
Product Description
Part name | Excavator Travel Motor Parts |
Swing Motor Model | ZX230 |
Material | Steel |
Model | ZX200 ZX230 ZX330 |
MOQ | 1PC |
Port | Guangzhou |
Payment term | T/T, Western union, as required |
Delivery | 3 days after the payment received |
Shipment | by sea, by air, by express or as required |
# | Part No | Part Name | Qty. |
9168003 | MOTOR; OIL (FOR ASSEMBLY OF MACHINE) | 1 | |
9195451 | MOTOR; OIL (FOR TRANSPORTATION) | 1 | |
0 | 1025878 | . HOUSING | 1 |
2 | 4396696 | . SEAL; OIL | 1 |
3 | 4417431 | . PISTON | 2 |
6 | 4409640 | . PIN; KNOCK | 1 |
7 | 2042080 | . SHAFT | 1 |
8 | 991345 | . RING; RETAINING | 2 |
9 | 9173285 | . PLATE ASS'Y | 1 |
09A | .. PLATE | 1 | |
09B | .. PIN | 2 | |
10 | 4396755 | . BRG.; ROL. | 1 |
12 | 3085485 | . PLATE; SWASH | 1 |
12 | 3088017 | . PLATE; SWASH | 1 |
15 | 8075190 | . PISTON ASS'Y | 9 |
15 | 8099321 | . PISTON | 9 |
16 | 3081570 | . RETAINER | 1 |
17 | 4397757 | . BUSHING | 1 |
19 | 4396747 | . SPRING; COMPRES. | 6 |
20 | 2042060 | . ROTOR | 1 |
20 | 2052977 | . ROTOR | 1 |
20 | 2051451 | . ROTOR | 1 |
22 | 3081593 | . PLATE; FRICTION | 4 |
23 | 3081592 | . PLATE | 4 |
25 | 3081595 | . PISTON | 1 |
26 | 4396775 | . O-RING | 1 |
28 | 4396774 | . O-RING | 1 |
29 | 3081594 | . SPRING; DISC | 1 |
30 | 4420958 | . O-RING | 1 |
31 | 4506415 | . O-RING | 3 |
34 | 9167777 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 |
34 | 9195450 | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 |
34 | 9244289 | . VALVE; BRAKE (FOR ASSEMBLY OF MACHINE) | 1 |
34 | 9260017 | . VALVE; BRAKE (FOR TRANSPORTATION) | 1 |
35 | 4396759 | . BRG.; NEEDLE | 1 |
35 | 4631910 | . BRG.; NEEDLE | 1 |
36 | 4422627 | . PIN; KNOCK (FOR ASSEMBLY OF MACHINE) | 2 |
36 | 4422627 | . PIN; KNOCK (FOR TRANSPORTATION) | 2 |
36 | 4610452 | . PIN; KNOCK (FOR ASSEMBLY OF MACHINE) | 2 |
36 | 4610452 | . PIN; KNOCK (FOR TRANSPORTATION) | 2 |
36 | 4630921 | . PIN; KNOCK (FOR TRANSPORTATION) | 2 |
38 | 3081568 | . PLATE; VALVE (FOR ASSEMBLY OF MACHINE) | 1 |
38 | 3081568 | . PLATE; VALVE (FOR TRANSPORTATION) | 1 |
38 | 3101081 | . PLATE; VALVE (FOR ASSEMBLY OF MACHINE) | 1 |
38 | 3101081 | . PLATE; VALVE (FOR TRANSPORTATION) | 1 |
38 | 3106481 | . PLATE; VALVE (FOR ASSEMBLY OF MACHINE) | 1 |
38 | 3106481 | . PLATE; VALVE (FOR TRANSPORTATION) | 1 |
40 | M341850 | . BOLT; SOCKET | 9 |
