EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear

  • EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear
  • EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear
  • EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear
  • EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear
  • EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear
Place of Origin CHINA
Brand Name NEUTRAL
Model Number EC300D EC290B PRIME
Minimum Order Quantity 1 PCS
Packaging Details wooden box
Delivery Time 15-30 Days
Payment Terms T/T, Western Union,RMB
Supply Ability 100 PCS each month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Machinery EC300D EC290B PRIME Model EC290B, EC290C, EC300D, ECR305C, FC3329C, PL3005D
Part No. VOE14570794 Type Undercarriage Parts
Material Steel Quality Good
Package Pallet
High Light

Heavy Duty Slewing Bearing Ring

,

PL3005D Slewing Bearing Ring

,

EC290B Slewing Bearing Ring
Leave a Message
Product Description

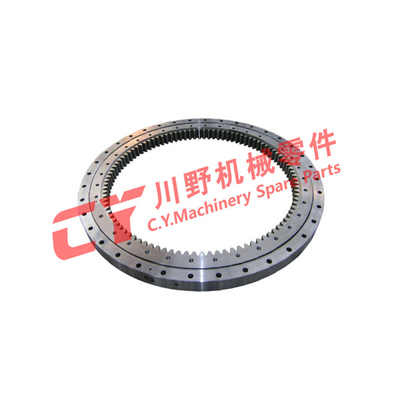

EC300D EC290B PRIME EC290C, ECR305C, FC3329C, PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear

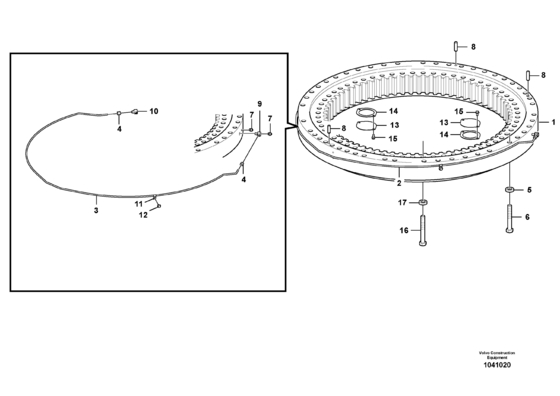

Pos. Part No Qty Parts name Comments
1 VOE14520573 [1] Swing gear S/N 10001-10630
  VOE14563335 [1] Swing gear S/N 10631-16011 S/N 80001-81215
  VOE14570794 [1] Swing gear S/N 16012- S/N 81216-
  VOE14618789 [1] Seal
2 VOE14524176 [2] Tube S/N 10001-16011 S/N 80001-81211
  VOE14577565 [1] Pipe S/N 16012- S/N 81216-
3 VOE14577566 [1] Pipe
4 VOE14564124 [2] Nut
5 VOE14531025 [31] Washer
6 VOE993002 [31] Hexagon screw
7 VOE914167 [2] Lubricating nipple
8 VOE14531010 [3] Pin
9 VOE14555862 [1] Elbow
10 VOE14555861 [1] Elbow
11 SA9315-01002 [1] Insulating clip
12 VOE946471 [1] Flange screw
13 VOE14531013 [2] Cover
14 VOE14531014 [2] Gasket
15 VOE946441 [4] Flange screw
16 VOE991649 [40] Hexagon screw
17 VOE11055610 [40] Plain washer



EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear 0



EC300D EC290B PRIME EC290C ECR305C FC3329C PL3005D VOE14570794 Heavy Duty Slewing Bearing Ring Swing Cycle Gear 1



FAQ





Q. Which countries have you exported?

ASIA: Iraq, UAE, Turkey, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon

EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland

OCEANIA: Australia, Fiji, Kiribati, New Caledonia

AMERICAS: Canada, Jamaica, Brazil, Peru, Chile,

AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria



Q: How can I get a quotation?
A: A complete quotation based on the details as follows in your inquiry:
1. Part No. 2.Engine model 3.Machinery model 4. Description and size

Picture. 6.. Quantity 6. Other requirements, such as Packing, Shipping and so on.



Q: 4. When can you deliver after sending deposit?
It depends on your order quantity, if we have stock then need about 3~10 working days get it ready, if no stock we will start to produce when the deposite received. Usually it takes 15-60 days for different items.


Q: How do you pack the goods?
We have 20 years experience on export, finished products will be carefully handled by three steps:
1: Wrapped with packing paper or plastic bag;
2: HKT / FUP box or neutral box;
3: Put in an appropriate carton box or wooden boxes and be fixed firmly.



Q: How can I know the status of my order?
We will keep you udpate the process of the preparation, to ensure all issues are resolved prior to the delivery.products pictures can be provided if required. We shall send out the goods immediately after confirmation and you will get the tracking information right away



Q: How to guarantee your service?

A. Strict inspection during production

B. Strictly check the products before shipment to ensure our packaging in good condition

C. Track and receive feedback from customer regularly



Q: What will you do for quality complaint ?

A. We will respond to customer within 24 hours.

B. Our QC will retest the same stock item, if confirmed it is quality problem, we will make corresponding compensation
